Model Train Sounds & Projects

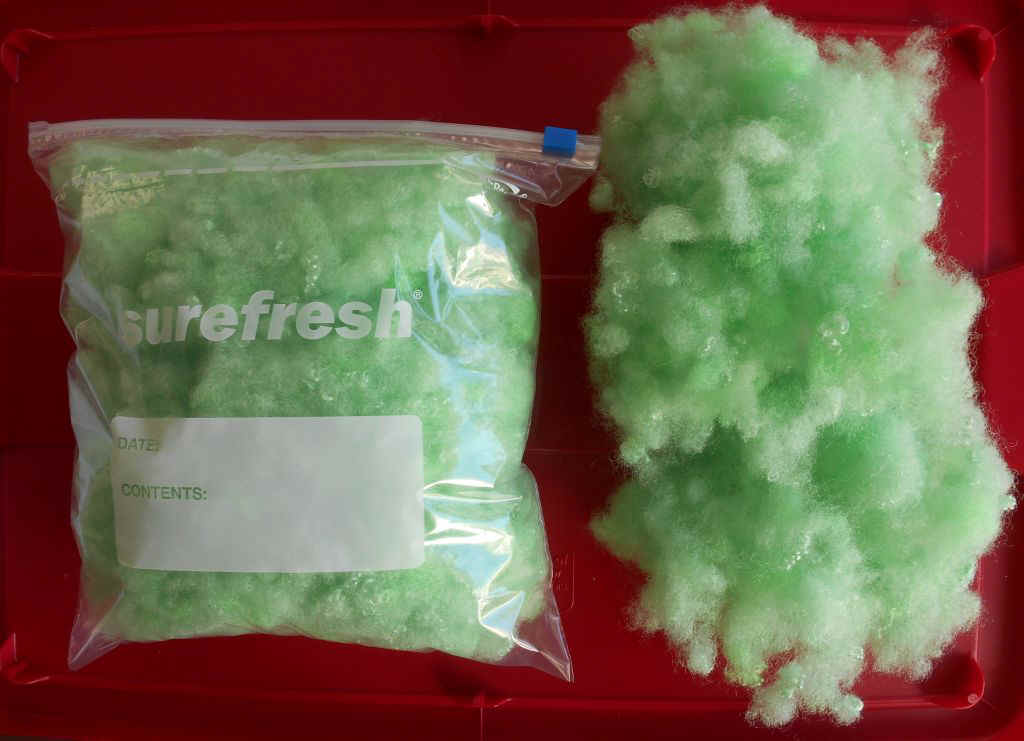

Project 2 - Fiber Fill Scenic Material

Fiber Fill material for Making your own Trees & Foliage for Model Train Scenery.

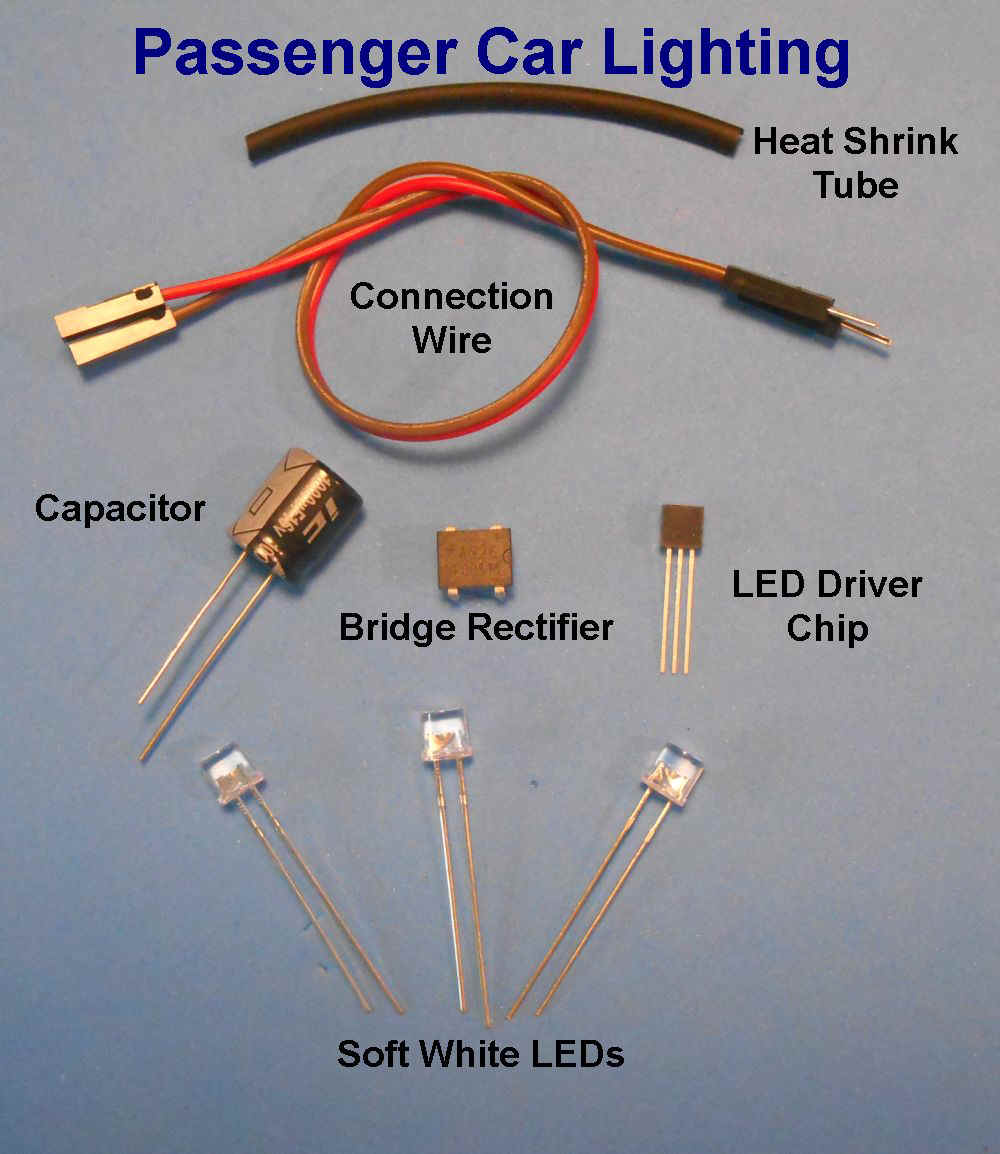

Project 3 -HO Passenger Car Lighting Kit

LED Lighting kit for passenger cars, Locomotives or buildings with flicker free and constant bidirectional lights. Two kits are available one without track electric pickup for cars with existing pickup and a kit that uses the copper collar electric pickup wheel sets in Project 4 (below). Most passenger cars use 36" wheels

Instructions included. (Soldering is required)

We recommend Project 18 for lighting Passenger Cars

Project 4 - Track Electric Pickup Collar Wheel set Kit

Two wheel sets with copper collars. Wheels are flat back, specify whether 33" or 36 " are required. Instructions included.

The wheel diameter is measured across the tread (the contact part with the track).
33" wheel size (HO scale 3/8", 0.9cm ) ( mostly freight cars and cabooses)
36" wheel size (HO Scale 13/32" or 1 cm) (most passenger cars except old timers)

(Soldering is required)


Project 5-HO Caboose Lighting Kit

A complete set that includes electrical components, bridge rectifier, capacitor, LED Driver chip, 4 LEDs (2x 2mm red,1x5mm Yellow,1x5mm soft white) and connection wires along with two 33" wheel sets with copper collars for electric track pickup. Instructions included.

(Soldering is required)


Project 7 - FRED End of Train Flashing Device Kit

Components for assembling an End of Train Flashing Red Light . Uses a CR2032 dime sized battery (not supplied due to Postal Regulations). Kit Includes components shown. A slide switch to turn off the light when not in use and a Flashing LED is included. Suitable for HO, S and O scale.

(Soldering is required)


Project 8 - O or S Scale Caboose Lighting Kit using on-Board Battery

Components for assembling LED Lights in a O Scale (Lionel) Caboose , other O Scale cabooses and S Scale (American Flyer).

Uses a 9 Volt on-board battery (not supplied) to direct 20 mamps current to two 3mm Red rear LEDs and one 5mm soft white LED using a floor mounted ON/OFF switch. Instructions included.

(Soldering is required)


Project 9 - O or S Scale Passenger Car Lighting Kit using an on-Board Battery

Components for adding soft white 5mm LEDs to either S Scale or O Scale rolling stock.

Uses a 9 Volt on-board battery (not suppliesd) to direct 20 mamps current to three 5mm soft white LEDs mounted in the cabin ceiling. An ON/OFF switch is accessible from under the car. Instructions included.

(Soldering is required)


Additional Wheel Sets for Projects 3,4 and 5

Two HO Scale metal wheel sets without the copper collars can be used to replace the other wheels on the trucks of the rolling stock car.

These wheel sets are available in 33" (3/8", 0.9cm diam) or 36" (13/32",1 cm diam). The wheels have smooth backs and are produced by a leading US company. If ordered with a kit the wheel sets will be included as part of the kit. Each wheel set consists of 2 wheels and one axle sold as a group of 2.

$3.50 / 2 Wheel Sets *

33" Wheel Size

36" Wheel size

Project 11 - O or S Scale LED Light Conversion Kit for Rolling Stock

This kit includes the electrical components for converting incandescent bulbs to LED circuits for O and S Scale Rolling Stock such as passenger cars and Cabooses with electric track pickup already installed.

Three White 5mm LEDs and Two Red 3mm LEDs are included along with connecting wires and switch.

Instructions are included for installation.

$13 /Kit*

One Kit

Project 12a

Unmodified HO Scale Signal Kit

This kit includes the unmodified signal and electrical components for modifying a HO Scale Bachmann Block Signal. A 620 ohm resistor is included for use with a 9 Volt battery or power supply.This kit is for those who wish to prepare the signal by installing the LEDs and wiring according to the instructions included.

Modified HO Scale Signal Kit

This Kit includes a modified HO Scale Bachmann signal with LEDs and wiring installed. The aspect is Green over Red. A 620 ohm resistor is included for use with a 9 Volt battery or power supply (not included). For operating signals see Project 12b and 12c below.

Some soldering is required for both kits.

$5.50 Signal Unmodified*

$10 Signal Modified*

One Unmodified

One Modified

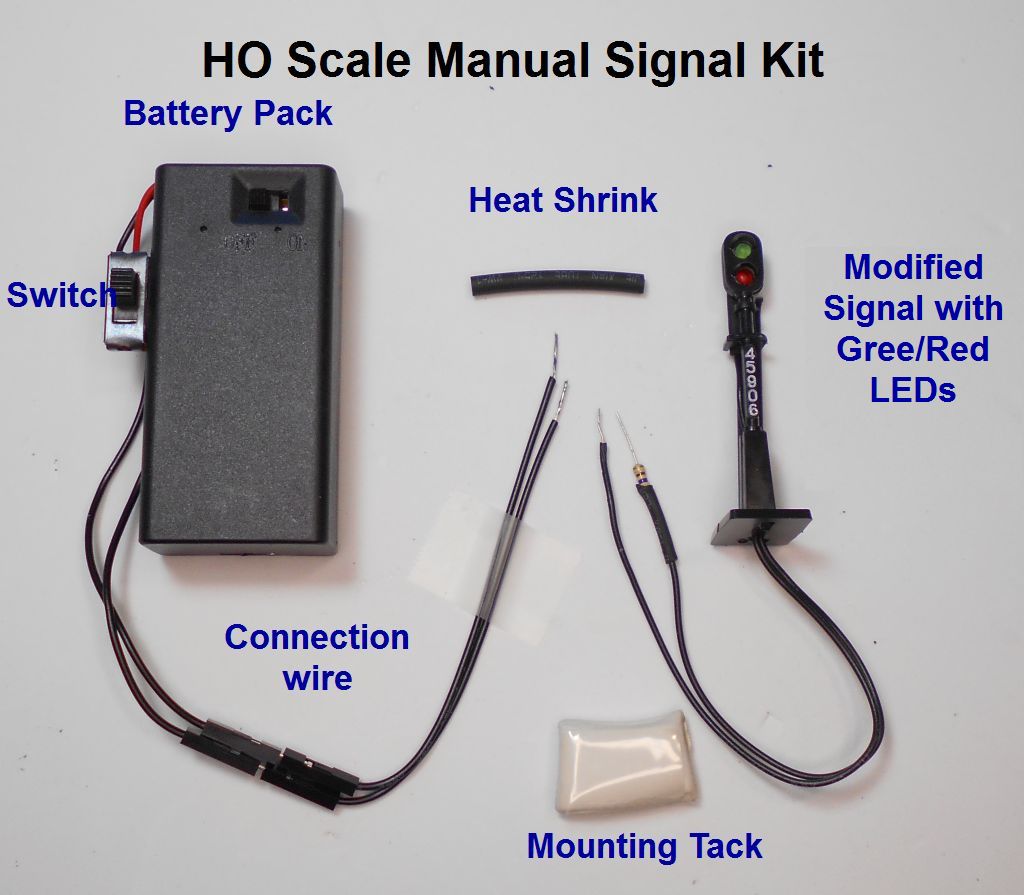

Project 12b Modified HO Bachmann Signal System, Switch operated.

This kit includes a Bachmann block signal with LEDs, wiring and resistor installed. A 9 Volt battery holder with ON/OFF switch plus a DPDT switch attached, used to change the signal aspect from Green to red and Back

NOTE: The battery is not included and additional 26-28 Gauge connecting wire may be needed for remote location of the power pack. Soldering is also required.

$18 Signal Kit

Manual operated*

One Kit

Project 12c Modified HO Bachmann Signal System, Automatically Operated

This kit includes a signal with LEDs and wiring installed into a Bachmann block signal along with connecting wires, signal circuit relay board, reed switch and 2 neodymium magnets . The kit is available with a 9 VDC power module with a plug for US use and adapter plug to connect to the circuit board.

This kit is also available without the power source.

$29/ Signal Kit Automatic Operated with 9VDC power*

$22/ Signal Kit without 9VDC power source*

One Kit

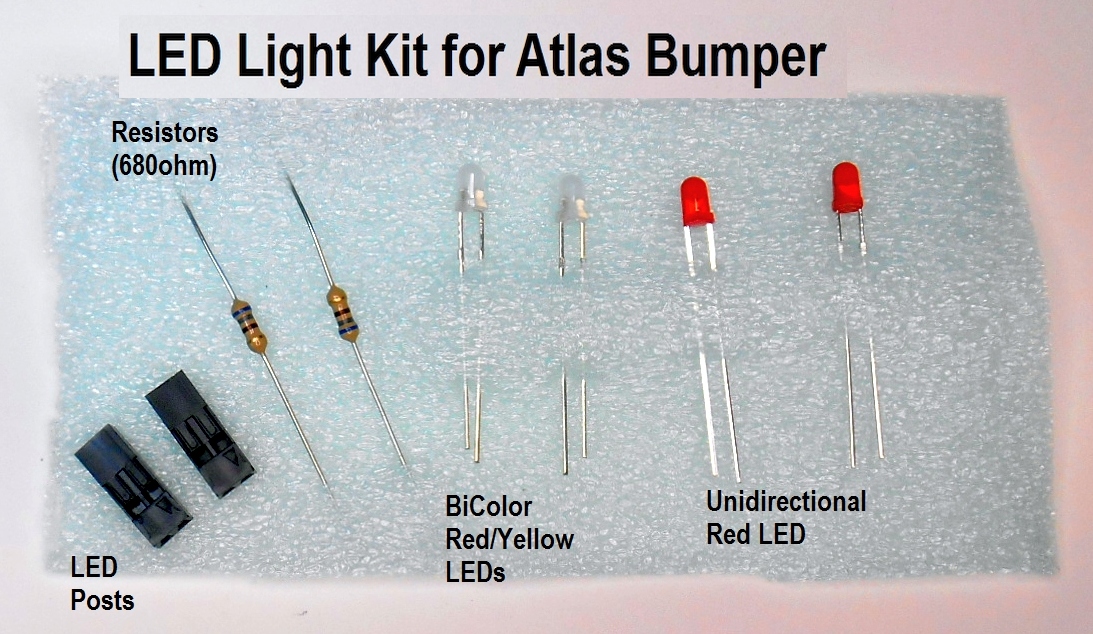

Project 15- Add an LED to an Atlas HO Bumper

This kit includes the components for installing an LED circuit into either an Atlas (#843) HO scale end of track Bumper. The kit can be used for 2 Bumpers available at Hobby shops or online.

Lighting options include a static unidirectional Red LED or Bicolor Red/Yellow LED. Only the latter will light when current direction is changed.

Instructions are included. Soldering of some components is required.

$5 / Kit*

One Kit

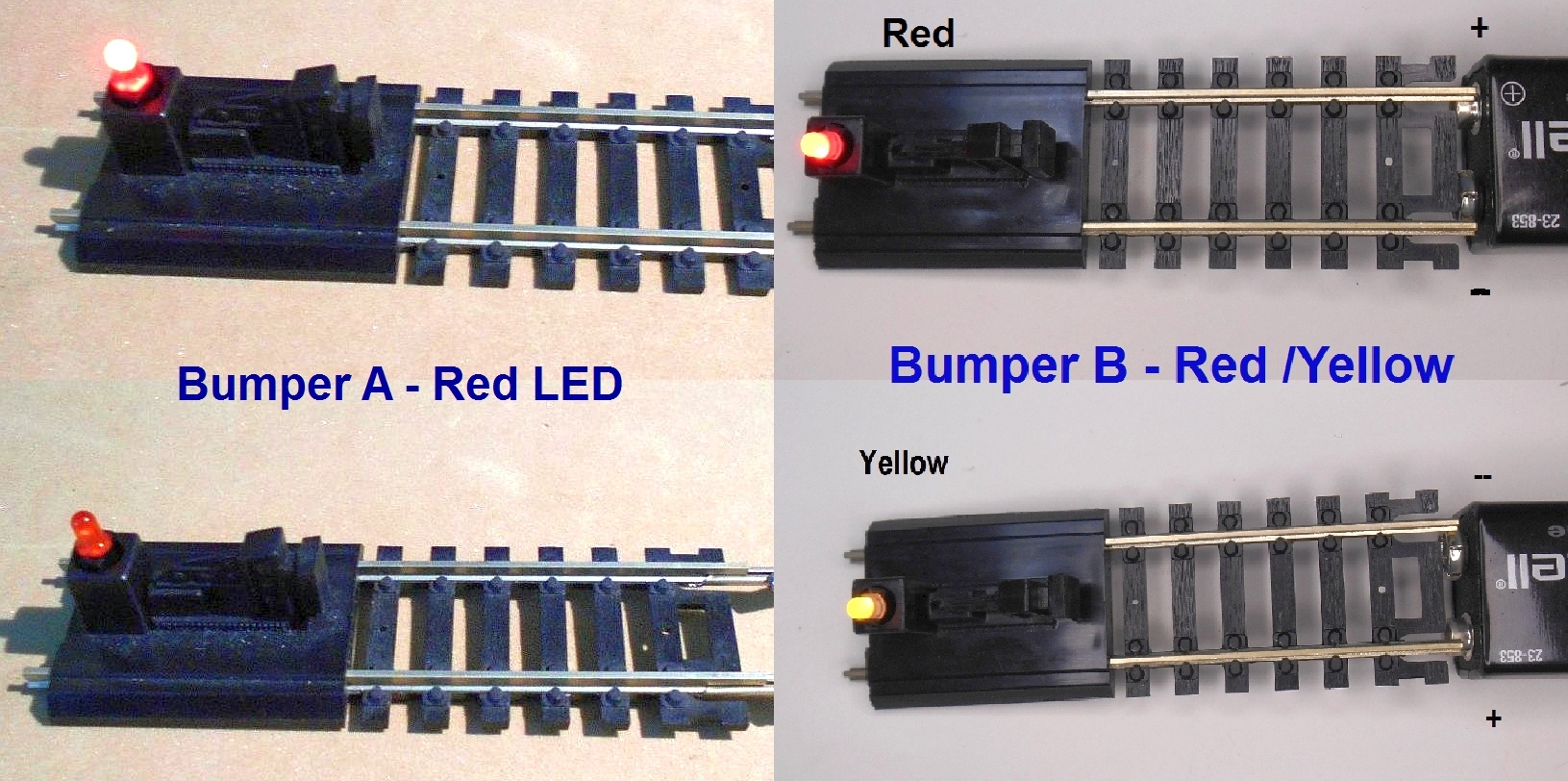

Project 15b- Modified Atlas Bumper with LED installed.

This is a new Atlas (#843) HO scale Bumper prepared with an LED installed . The track is Code 100 nickel silver track.

Two options are available.*

A. Atlas Bumper with unidirectional Red LED. (Lights Red only when train approaches the bumper.

B. Atlas Bumper with a bidirectional Red/Yellow LED (Red Lights as train approaches and Yellow as it leaves)

* 1)Track must be wired to NMRA standards. 2) Lights in DC mode. In DCC mode A lights in Red in both directions and mixed color with B. 3) These will not work with the Auto-Reversing system (see Project 16 - Accessories 5)

$8 Bumper A*

$8 Bumper B*

One Bumper A

One Bumper B

Project 16 - Automatic Reversing Module This Kit is used to install a Reversing Motor Relay circuit board to automate back and forth Locomotive or Trolley movement on a point to point layout. Diodes are used to stop the train at both ends of the track and require soldering to the track. Track insulators are included for HO scale track.

Use in DC operating mode. Can be used in N, HO, scales. For larger scales S, O and G see Project 26

Full Instructions are included. For N scale insulators email a note.

$23/Kit*

One Kit

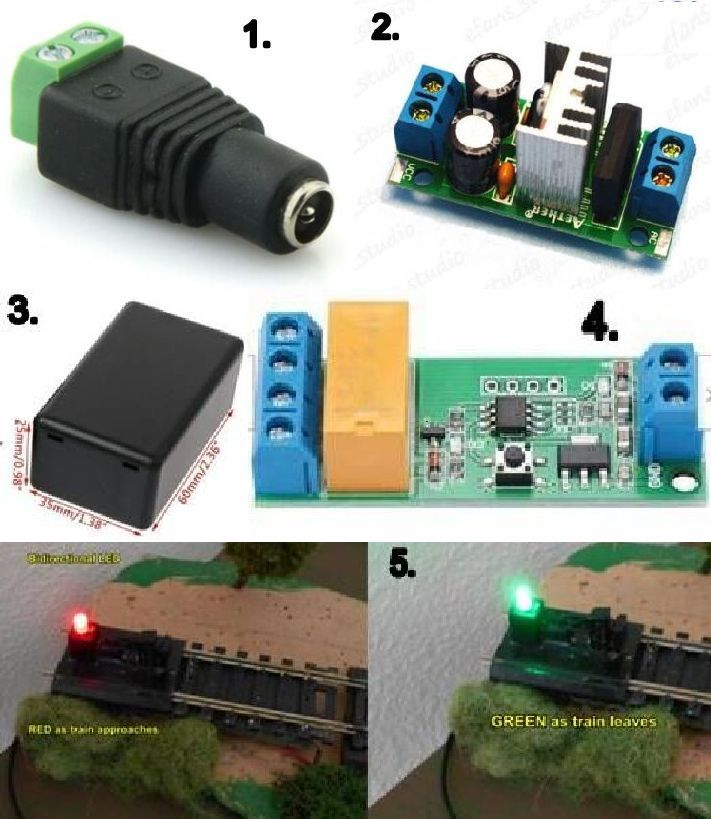

Project 16 - Accessories

1.DC Adapter for using a 6-12 V DC power Unit

2. 12-20 Volt AC to 9 Volt DC Power Converter

3. Black Project Box to house Relay Board

4. Replacement Auto Reversing Relay Module

5. Set of 2 LED Lighted Modified HO Scale Atlas Bumpers with Red/Green bidirectional LED and custom wiring

1. $3 /DC Adapter Plug

2. $6 /12VAC to 9V DC Converter

3. $4 /Project Box

4. $14 /Relay Module

5. $18 /Set of 2 Bumpers

Select here to ORDER*

Accessories

Project 17 - Stop and Go Circuit Module This kit includes a Relay Circuit Board , a reed switch, a slide switch and Two neodymium magnet. The magnet and reed switch is used to activate the board's stop delay . Full instructions are included. It is recommended that the magnets be glued to the undercarriage of the loco or trolley to avoid attaching to the track.

These magnets are harmful if swallowed.

$24 /Kit*

One Kit*

Projects 12,16,17,21 - 9 Volt DC Power Supply AC Wall Adapter 5.5/2.5mm 1000ma plus adapter Plug

This wall power unit uses an input of 100-240 Volt AC with US plug, Output is 9 Volts DC

The Center output is Positive , Cable is 2 ft 9 inches in length.

Plus Adapter plug for converting to direct 2 wire output .

This adapter is used for operating the our circuit boards with 9 VDC including the Auto Reversing Unit, Stop and GO Relay, Automated Signal system and Power Distribution Boards.

Package include 1 Power Adapter and 1 Plug adapter

$9.50*

One Set *

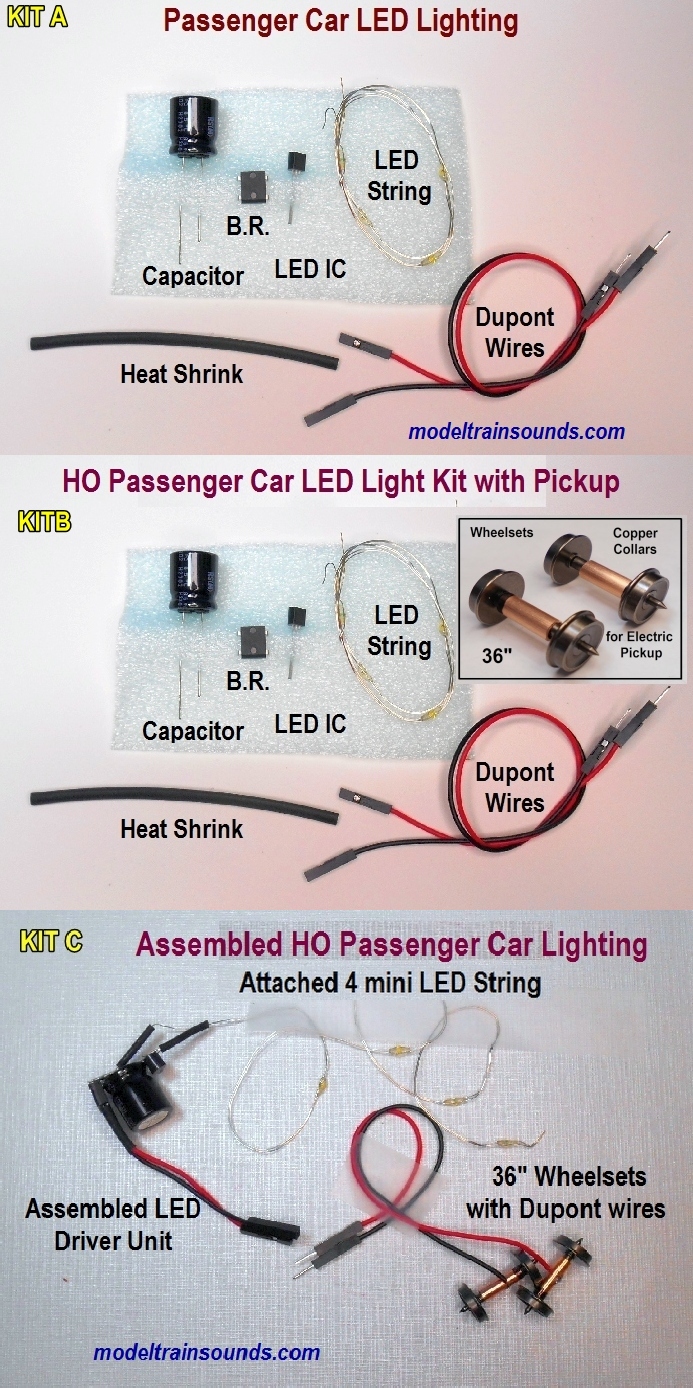

Project 18 - Fairy Light LEDs for using existing Track electrical pickup

Three kits are listed

1) Kit A. For Passenger cars with a method for electric pickup installed. The components include a String of mini LEDs. along with electrical components and complete instructions. Soldering is required.

2) Kit B. This kit is the same as Kit A but includes 2 wheel 36" sets with copper collars for track pickup of electrical current. Soldering is required. (If 33" wheels are required sent a note when ordering)

3) Kit C Assembled LED Driver Unit an string of 4 mini LEDs Plus connection wires to track pickup. Soldering of components is not required. The LED string can be shortened to accommodate smaller cars.

$5.50 Kit A*

$10 Kit B*

$16 / Kit C *

One Kit A

One Kit B

One Kit C

Project 19 HO Passenger Car Lighting Kit using an On-Board Battery and switch+ Fairy Lights

This kit uses a low profile battery holder for a CR2032 battery along with a switch and string of 4 mini light LEDs to light passenger cars. FOR HO Scale but can be adapted for O or S Scales. Instructions are included. No soldering required.

Does not include the battery.


$9/Kit *

One Kit *

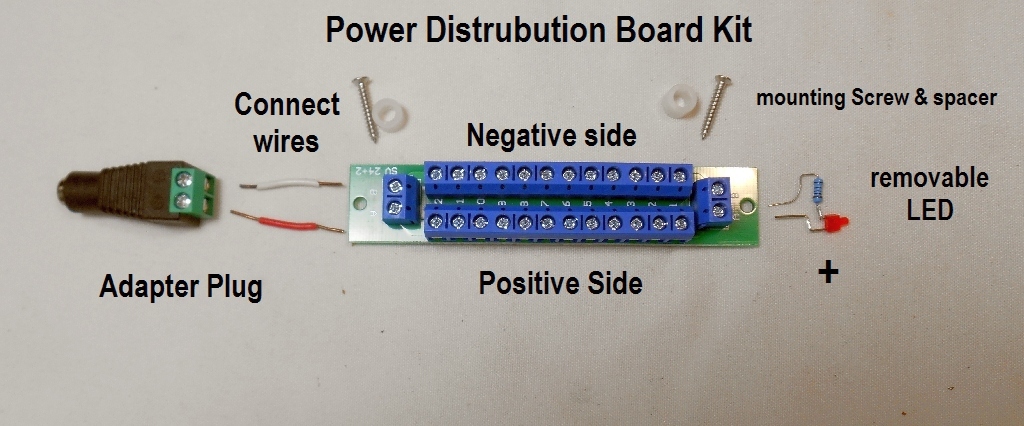

Project 21 Power Distribution Board for powering accessories

KIT A (13 Terminals) This kit includes

1. A power distribution board with 1 input and 13 output terminals

2. A 2.1x5.5mm adapter plug and wires for use with a standard 110 VAC transformer with out put from 5-12 Volts.

3. An ON/OFF LED indicator, optional for port 13

4.Screws and collars for attachment to a console.

5 Adapter plug for adding DC wall transformer

KIT B (6 TERMINALS)

1. A power Distribution Hub with 1 input and 6 outputs

2. Push button inputs (no screw for wires )

3 . Adapter plug for adding DC wall transformer

For a 9VAC Transformer or 12VAC-> 9VDC converter see Project 16 item 2.

$9.50 /Kit A*

$6 /Kit B*

One Kit A*

One Kit B*

Project 22 End of Track Indicator (EOTI) Kit

A) Kit includes components required to make 2 EOTIs. Assembly and soldering of components is necessary.

Does not include the track

Components include 4 LEDs, 2 Holders, Resistors and 2 Bumpers.

$5/Kit A*

One Kit A *

B) One Assembled EOTI with Red (unidirectional) LED installed. A bumper is included for optional use.

C) One Assembled EOTI with Red/Yellow (bidirectional) LED installed. A bumper is included for optional use.

Prepared EOTI

$6 Red Only B*

$6 Red/Yellow C*

One Red EOTI B

One Red/Yellow EOTI C

Project 25 A Train Controller for small layouts

This kit includes a Speed controller with direction switch , 12 VDC Transformer with 2 amp max output, 24 Watts Power along with an adapter plug and wires for connecting the transformer to the speed controller . Instructions included.

$24/Kit

One Kit *

Comments

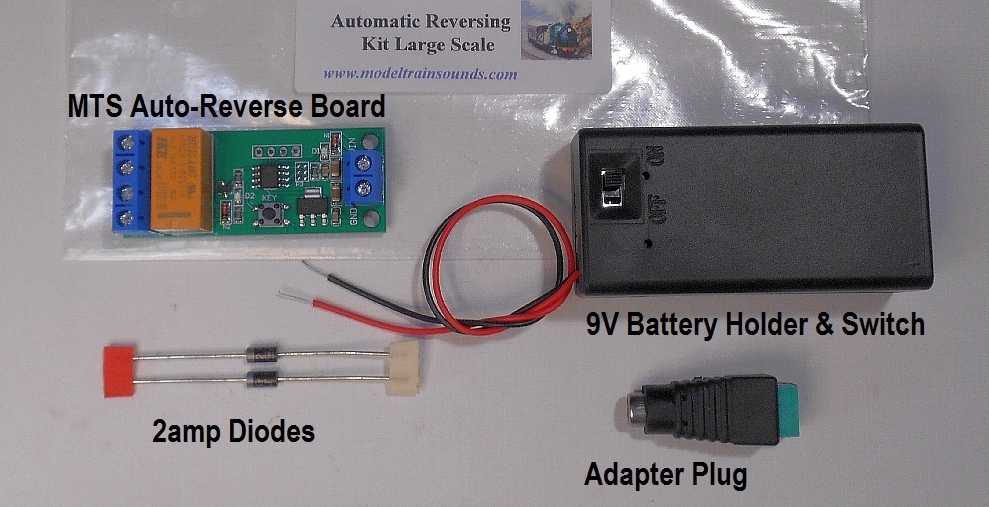

Project 26 Automatic Reverse Kit- Large Scale This kit is for Scale S, O and G for use with a point to point reversing Layout using the MTS automatic reversing system. The kit includes

* The MTS auto-reversing timed DPDT Relay Board used to change the direction of current flow after preset set time.

* A 9 Volt Battery holder for powering the Board

* An adapter plug for use of a wall transformer 9-12VDC to power the board instead of using the battery.

* Two 2 amp diodes to control the stopping of the loco.

Full instructions for installation.

$25/Kit

One Kit *

Accessories for Project 26

These items are listed elsewhere on this page.

1 Speed Controller See Project 25

2. 9VDC transformer for powering the A-R board see below Project 17

3 . AC to DC (9 Volts) for Board . See 16 Accessory #2)

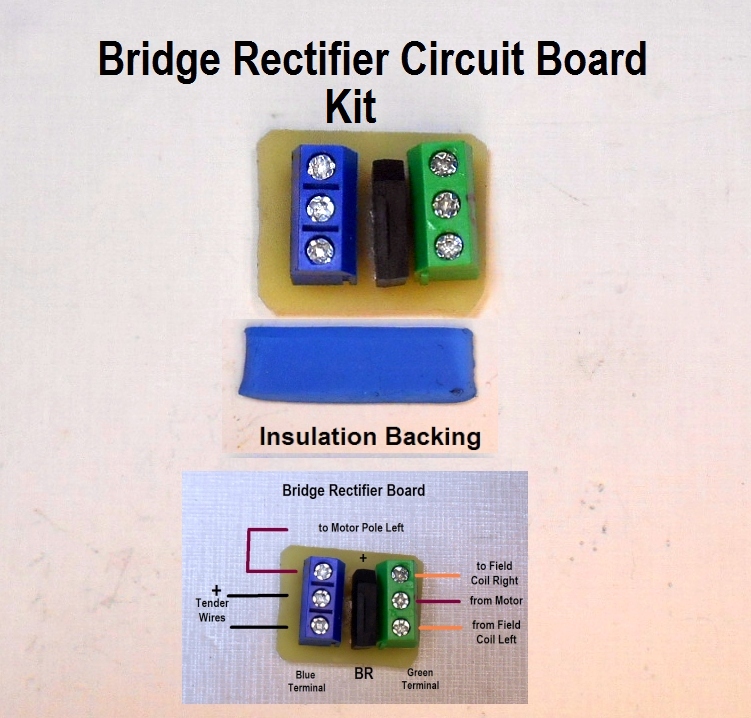

Project 27B S/O Scale Convert to DC Modification * Circuit Board with Bridge Rectifier to enable forward and reverse using a DC controller		$10	One Kit *

All Orders are processed through PayPal's secure server including Credit Cards

Shipping is via US Postal Service

A Flat Rate USPS Shipping of $5 per Order for USA (select this at Checkout)

For International orders shipping costs will be billed separately via Paypal before shipment is made.

(Canada $15, UK/Europe $18, Aus NZ/Asia $22)
